Shear Bolt Strength Chart - Bolts are made at different strengths. They show examples of the typical bolt grade markings for each bolt grade. This formula should only be used as an estimation. Web hex bolt identification, markings and strength chart table guide. Web the article outlines the principles of calculating the shear strength of bolted connections, emphasizing that the load on each bolt is determined by the working shear force, and the bolt's ability to withstand this force is contingent on factors such as the bolt's diameter, the permissible shear strength of the material, and the number of shear. Web the most common bolt grades are 8.8, 10.9, and 12.9. As a layman, how can i know the shear strength of a particular size bolt? Shear strength of a threaded fastener. In addition, we give the material the bolt is made from as well as its hardness range. Web metal mechanical properties chart:

stainless steel bolt strength vs grade 8

Shear strength, tensile strength, yield strength. Class 10.9 alloy steel, quenched and tempered (mm) tension shear f’ c = 3000 psi (20.7 mpa) lb (kn) f’ c = 4000 psi (27.6 mpa) lb (kn) f’ c = 5000 psi (34.5 mpa) lb (kn) f’ c = 6000. Ebay.com has been visited by 1m+ users in the past month Tensile strength.

Tightening Metric Bolt Torque Chart Pdf Resume Examples

Jack stands are typically rated from 3 to 12 tons, so we’d think that the jack stand would fail before the bolt does. Web the article outlines the principles of calculating the shear strength of bolted connections, emphasizing that the load on each bolt is determined by the working shear force, and the bolt's ability to withstand this force is.

ASTM A449 HEX BOLT U Bolt

Shear strength, tensile strength, yield strength. What is the shear strength of carbon steel bolts? Bolts are made at different strengths. Bolt stress analysis engineering calculator per aisc 9th edition. Web quickly find the tensile, yield, proof, and estimated shear strengths of your bolts.

Grade 8 Bolts Lightning Bolt & Supply

Mechanical properties chart of ferrous metals. For example, if i want to attach something to the internal wall of my van ( 1mm stainless steel ) using a rivnut and standard metric bolt and it should hold up to 50 kg, how would i figure out the right size and grade to use? Yield strength (psi) grade identification marking min..

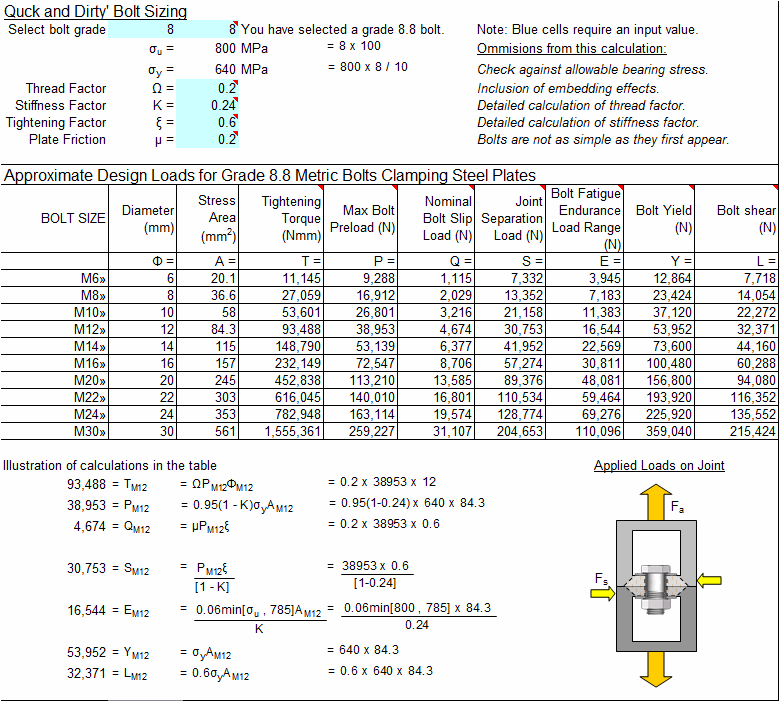

Quick and Dirty Bolt Sizing Calculation.xls

Web the most common bolt grades are 8.8, 10.9, and 12.9. Reference to table 1 shows that the yield strength of a grade 8 bolt is higher than the ultimate strength of a grade 5 bolt. This formula should only be used as an estimation. Bolt stress analysis engineering calculator per aisc 9th edition. Head marking class and material nominal.

Stainless Steel Bolt Shear Strength Chart

Mechanical properties chart of ferrous metals. Now take this and multiply by the same 72,000 psi and it results in approximately 21,740 pounds. Shear strength of a threaded fastener. By merely ensuring that the shear load is applied to the body of the bolt, the shear strength can improve by 8,260 pounds. Great to be able to buy just the.

Stainless Steel Bolt Shear Strength Chart

Web hex bolt identification, markings and strength chart table guide. Great to be able to buy just the right bolt for the job instead of a whole pack that'll just sit there forever! Ultimate strength, yield point of metals table chart. By using this load calculator, you agree to the following terms and conditions: When no shear strength is given.

Get to Know the Unknown about Bolt Adept Engineering Private Limited

Web shear strength of alloy steel is approximately 60% of its ultimate tensile strength. Mycnhistore.com has been visited by 10k+ users in the past month The bolt grade markings are illustrated in the charts. February 15, 2024 | by shane | 6 minutes of reading. For example, if i want to attach something to the internal wall of my van.

Bolt Depot Bolt Grade Markings and Strength Chart Ultimate Tensile

Web tensile strength (psi) core hardness rockwell min. Ebay.com has been visited by 1m+ users in the past month February 15, 2024 | by shane | 6 minutes of reading. As a layman, how can i know the shear strength of a particular size bolt? The following tensile, yield, proof, and estimated shear strengths are based show more.on the consensus.

Table 1 from Shear strength of highstrength bolts Semantic Scholar

Shear strength, tensile strength, yield strength. Web metal mechanical properties chart: Web the shear strength of bolts is taken as approximately 60% of the tensile strength. The allowable shear stress for bolts with no threads in the shear plane was taken as 60% of the minimum tensile strength divided by a safety factor of 3.0. Web tensile strength (psi) core.

This Is Not A Rule Of Thumb.

In addition, we give the material the bolt is made from as well as its hardness range. When no shear strength is given for common carbon steels with hardness up to 40 hrc, 60 % of the ultimate tensile strength of the bolt is typically used as acceptable shear strength. Shear strength, tensile strength, yield strength. Web quickly find the tensile, yield, proof, and estimated shear strengths of your bolts.

A Large Number Of Tests On High Strength Bolts Tested In Shear Has Indicated That The Shear Strength Is About 62% Of The Tensile Strength.

Bolts are made at different strengths. Web the shear strength of a fastener is approximately 60% of its tensile strength, but this is only an approximation and unless you have graded lag screws, there is no way to determine shear or tensile strengths. Great to be able to buy just the right bolt for the job instead of a whole pack that'll just sit there forever! By merely ensuring that the shear load is applied to the body of the bolt, the shear strength can improve by 8,260 pounds.

What Is The Shear Strength Of Carbon Steel Bolts?

Ebay.com has been visited by 1m+ users in the past month Web metal mechanical properties chart: (1) metal shear strength, tensile strength, elongation, yield strength & elastic modulus chart. Please note the bolt heads may also include the manufacturer's identification stamp, especially with high strength bolts.

Head Marking Class And Material Nominal Size Range (Mm) Mechanical Properties ;

Mechanical properties chart of ferrous metals. Web shear strength is defined as the load in pounds to cause rupture, divided by the cross sectional area in square inches of the part along the rupture plane. Web tensile strength (psi) core hardness rockwell min. The following tensile, yield, proof, and estimated shear strengths are based show more.on the consensus industry standard where applicable.
